In the realm of pharmaceutical engineering, precision and efficiency are paramount. One of the essential pieces of equipment that embodies these qualities is the steam jacketed kettle. This versatile apparatus is widely used for various heating and mixing processes, ensuring uniform temperature control and efficient heat transfer. In this blog, we will delve into the principle, construction, working, uses, merits, and demerits of the steam jacketed kettle, highlighting its significance in the pharmaceutical industry.

Table of Contents

Principle

The principle of a steam jacketed kettle lies in indirect heat transfer. Here’s how it works:

Steam Circulation: Pressurized steam is introduced into the “jacket,” the outer layer surrounding the inner vessel or “kettle.”
Heat Transfer: The hot steam transfers its heat energy to the kettle wall through conduction.
Product Heating: The heat from the kettle wall is then conducted to the product inside the kettle, effectively heating the contents.

Construction

A typical steam jacketed kettle consists of the following components:

Inner Kettle: Made of stainless steel, this is the container where the product is placed.
Steam Jacket: Surrounds the inner kettle, creating a double-walled chamber through which steam circulates.
Insulation: The space between the inner kettle and the steam jacket is often insulated to minimize heat loss.
Agitation Mechanism: Many kettles include an agitation system, such as a scraper or paddle, to ensure uniform heating and prevent scorching.
Controls: Equipped with temperature and pressure controls to regulate the steam flow and maintain the desired cooking conditions.

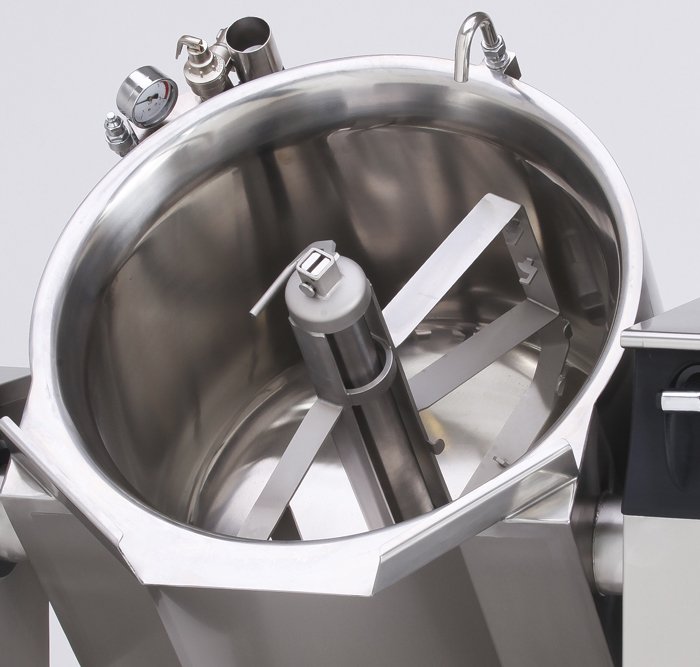

steam jacketed kettle source: wikimedia

Working

The working of a steam jacketed kettle involves several steps:

Steam Injection: Steam is introduced into the jacket, creating a heat transfer surface.
Temperature Control: Temperature controls regulate the steam flow, maintaining a consistent temperature for processing.
Agitation: Agitation mechanisms prevent sticking or burning of the product by ensuring even distribution of heat.

Uses

Steam jacketed kettles are used in various applications within the pharmaceutical industry, including:

Preparation of Pharmaceutical Products: Ideal for preparing ointments, syrups, and other liquid-based products.
Food Processing: Used in large-scale cooking processes for soups, stews, and sauces.
Confectionery Production: Suitable for cooking and mixing candies, chocolates, and other confectionery items.

Merits

Uniform Heating: Ensures even and controlled heating, preventing hot spots and ensuring consistent product quality.
Efficient Heat Transfer: Steam is an efficient heat transfer medium, allowing for precise temperature control and quick heating.
Large Batch Processing: Suitable for processing large quantities of product in a single batch, making it time and energy-efficient.
Versatility: Can be used for a wide range of applications, from pharmaceutical preparations to food processing.

Demerits

Initial Cost: Steam jacketed kettles can have a higher initial cost compared to some other processing equipment.
Maintenance: Regular maintenance is required to ensure proper functioning, including checking steam traps, valves, and the agitation system.

Conclusion

Both the steam jacketed kettle and the hammer mill are indispensable tools in pharmaceutical engineering. The steam jacketed kettle offers efficient and uniform heating for various processes, while the hammer mill provides effective size reduction and granulation. Understanding their principles, construction, working, uses, merits, and demerits can help pharmaceutical engineers make informed decisions about their implementation in different processes. By leveraging these tools, the pharmaceutical industry can achieve higher efficiency, better product quality, and improved overall productivity.

Frequently asked questions

What is a Steam Jacketed Kettle?

A steam jacketed kettle is a specialized piece of equipment used in various industries, including pharmaceuticals, food processing, and chemicals. It consists of an inner vessel (the “kettle”) surrounded by an outer layer or “jacket.” Steam is circulated within this jacket, providing indirect heat to the contents of the inner vessel.

How does a Steam Jacketed Kettle Work?

The principle of operation lies in indirect heat transfer.

- Steam is introduced into the jacket.
- The hot steam transfers its heat energy to the kettle wall through conduction.
- The heat then conducts from the kettle wall to the product inside, effectively heating the contents. This indirect heating prevents direct contact between the steam and the product, crucial for maintaining product sterility in industries like pharmaceuticals.

What are the Applications of Steam Jacketed Kettles in Pharmaceutical Manufacturing?

Steam jacketed kettles play a vital role in numerous pharmaceutical processes, including:

- Sterilization: Heating solutions to sterilization temperatures to eliminate microbial contamination.
- Mixing: Providing heat while mixing ingredients for consistent formulation.
- Evaporation: Concentrating solutions by evaporating solvents.
- Heating: Raising the temperature of liquids or solids for various unit operations.

What are the Benefits of Using Steam Jacketed Kettles?

- Sterility: Prevents direct contamination of the product with steam.
- Temperature Control: Precise temperature control can be achieved by regulating steam pressure and flow.
- Versatility: Suitable for a wide range of processes beyond just heating.
- Efficiency: Can efficiently transfer heat to the product.
- Safety: Indirect heating minimizes the risk of product contamination and potential safety hazards.

What are the Different Types of Steam Jacketed Kettles?

- Full Jacket: Steam circulates around the entire surface area of the kettle for uniform heating.
- Dimpled Jacket: Features dimples on the jacket surface to increase surface area for improved heat transfer.
- Other variations: May include features like agitators, baffles, and different jacket configurations depending on the specific application.

How to Maintain a Steam Jacketed Kettle?

Proper maintenance is crucial for optimal performance and longevity:

- Regular Cleaning: Thoroughly clean the kettle and jacket to prevent product buildup and potential contamination.
- Inspection: Regularly inspect for any signs of wear and tear, such as cracks or leaks.
- Preventative Maintenance: Perform routine maintenance checks and address any issues promptly to avoid costly repairs.

Where to Buy Steam Jacketed Kettles?

Steam jacketed kettles can be purchased from various sources, including:

- Specialized Equipment Manufacturers: Companies that specialize in manufacturing pharmaceutical and process equipment.
- Process Equipment Suppliers: Companies that supply a wide range of process equipment, including kettles.
- Used Equipment Dealers: May offer refurbished or used kettles at a lower cost.
